Arranging windows

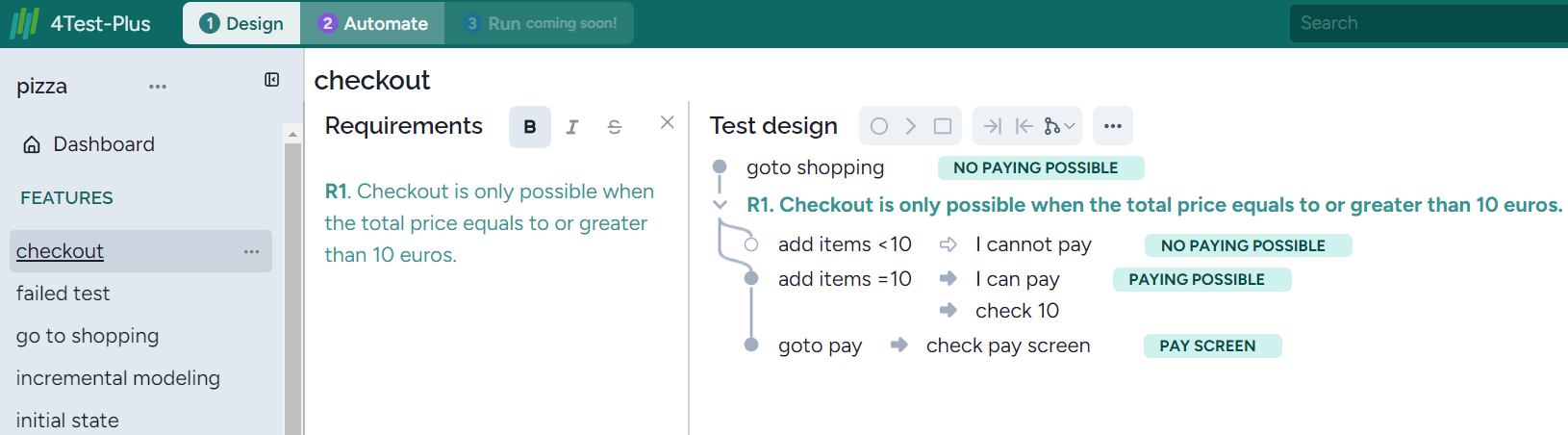

The two basic functionalities are modeling, i.e., test design, and implementation, i.e., automation. You can select between these two. In the case of test design, the two basic windows are the Requirement and the Test design windows.

Design phase

Image without caption

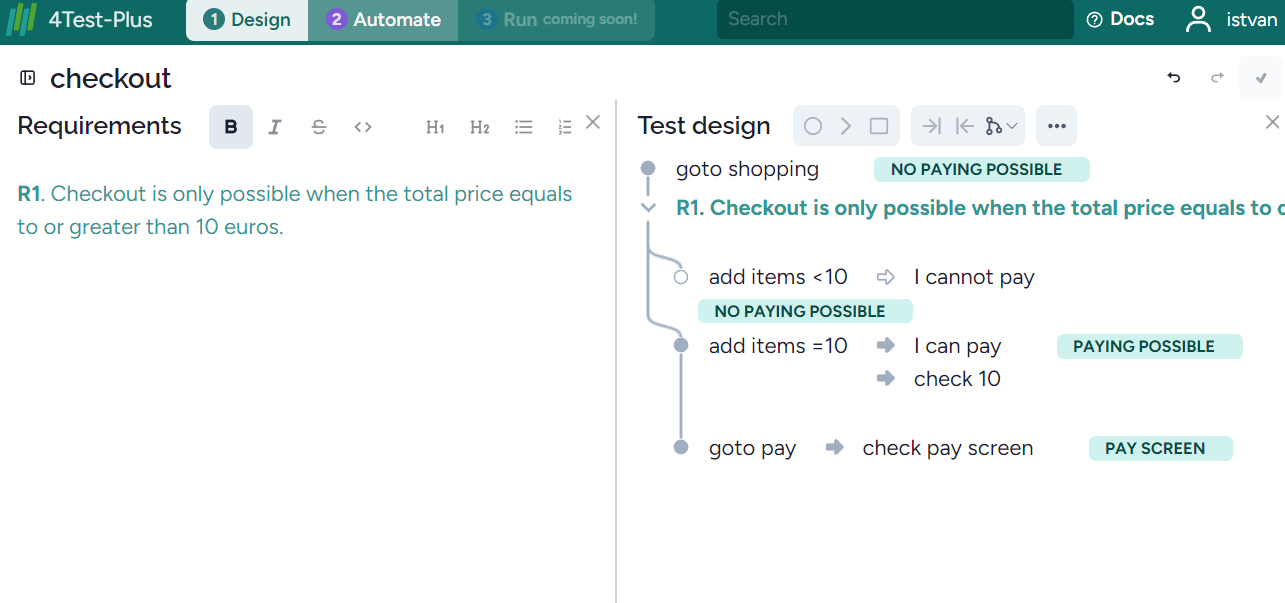

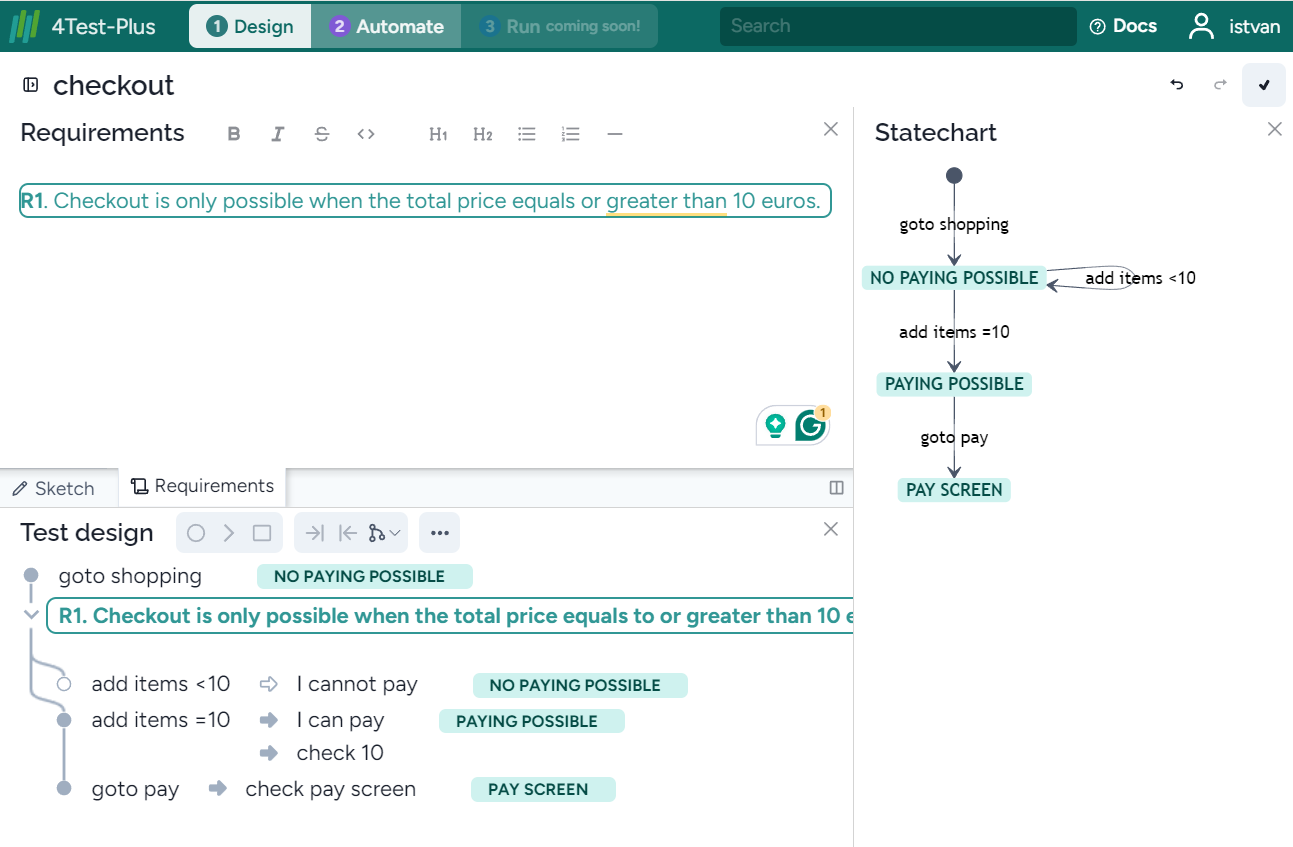

You can close any two windows:
Image without caption

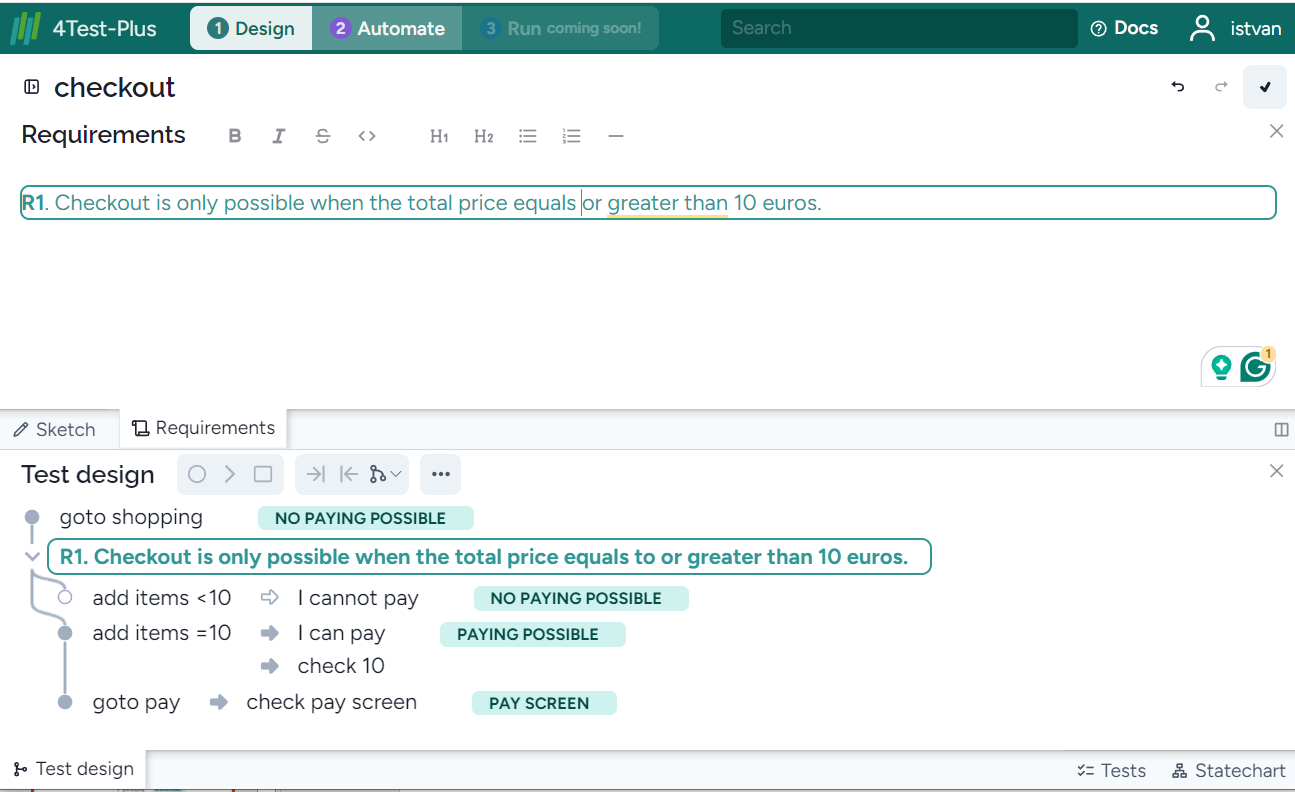

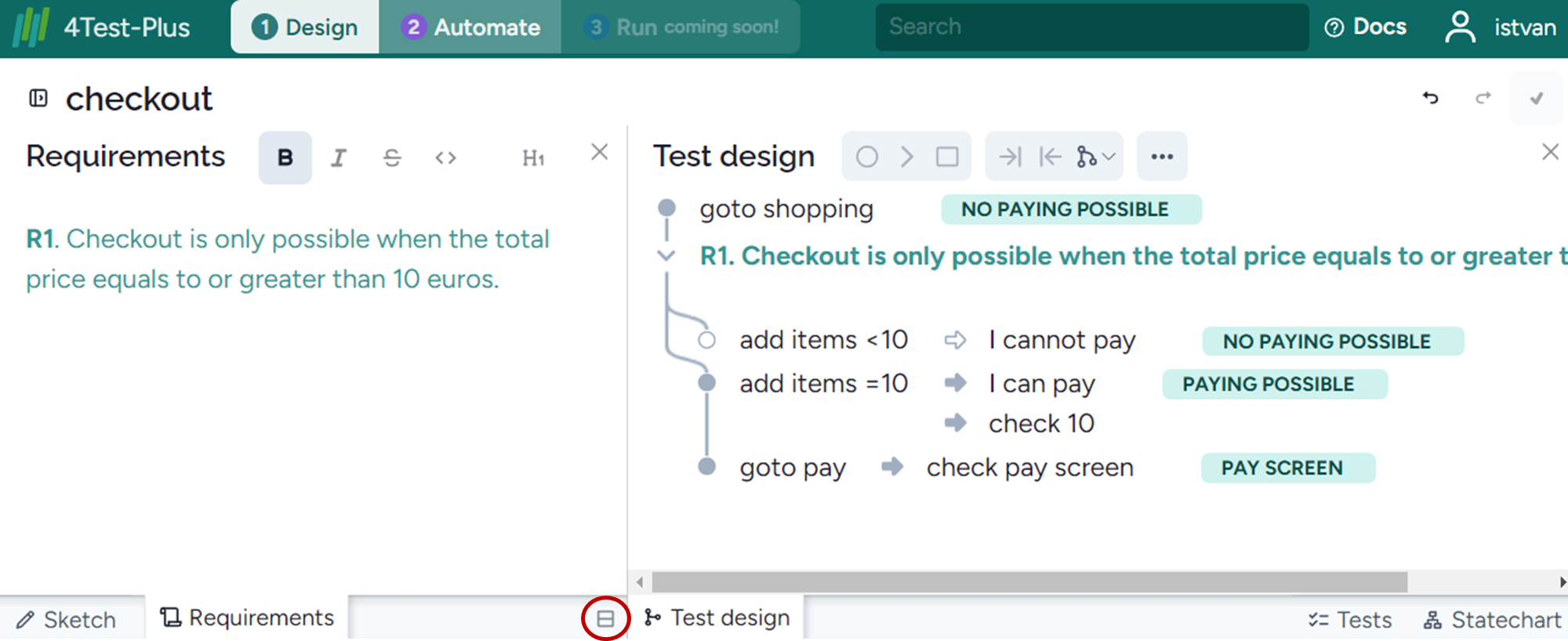

All the window’s borders can be moved. With this, the size of the window you just use can be set. according to your needs. For example, you can close the menu at the left and make the Requirement windows larger:
Image without caption
You can also remove the Test design window below the requirements by pressing the icon in the red circle:
Image without caption

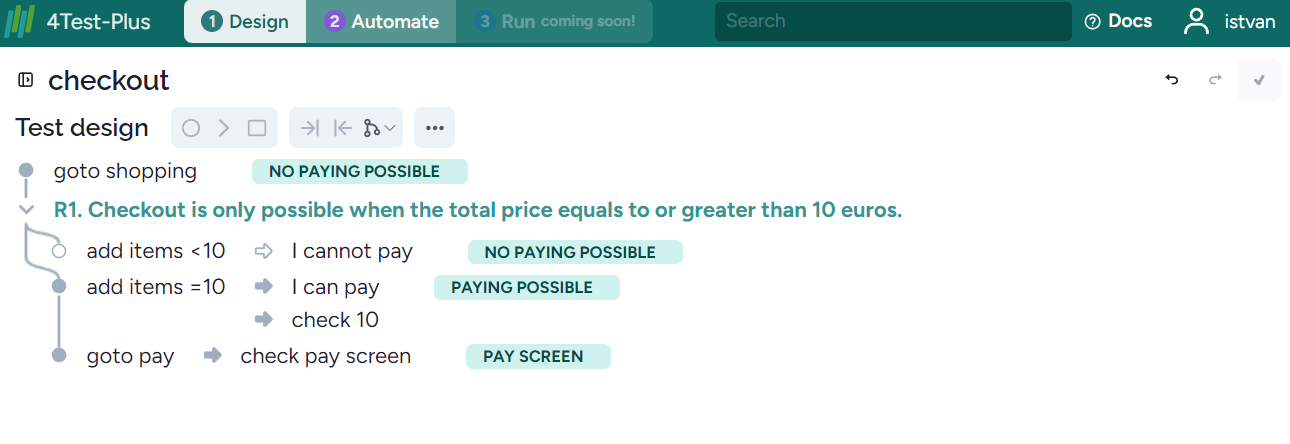

The result is:
Image without caption

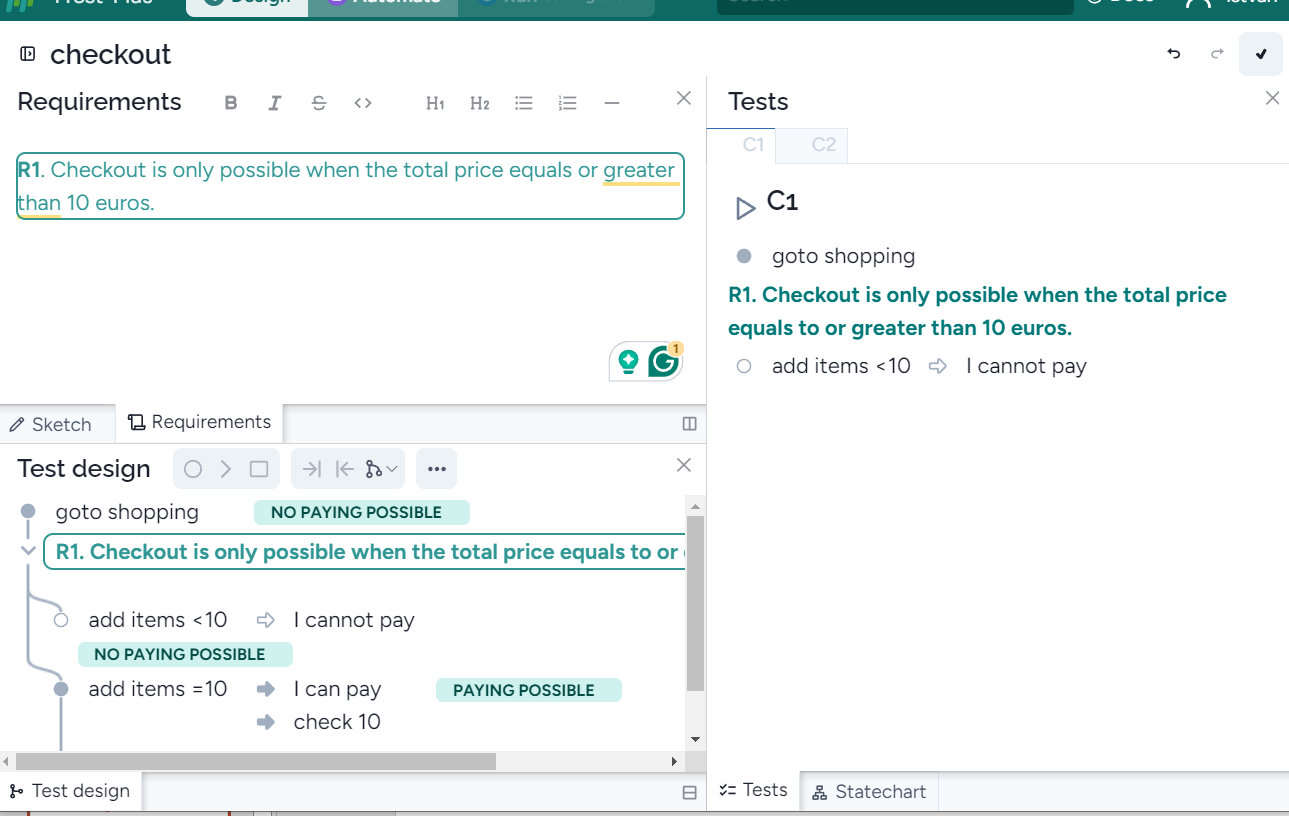

You can also display the test cases:
Image without caption
or the statechart:
Image without caption

Automation phase

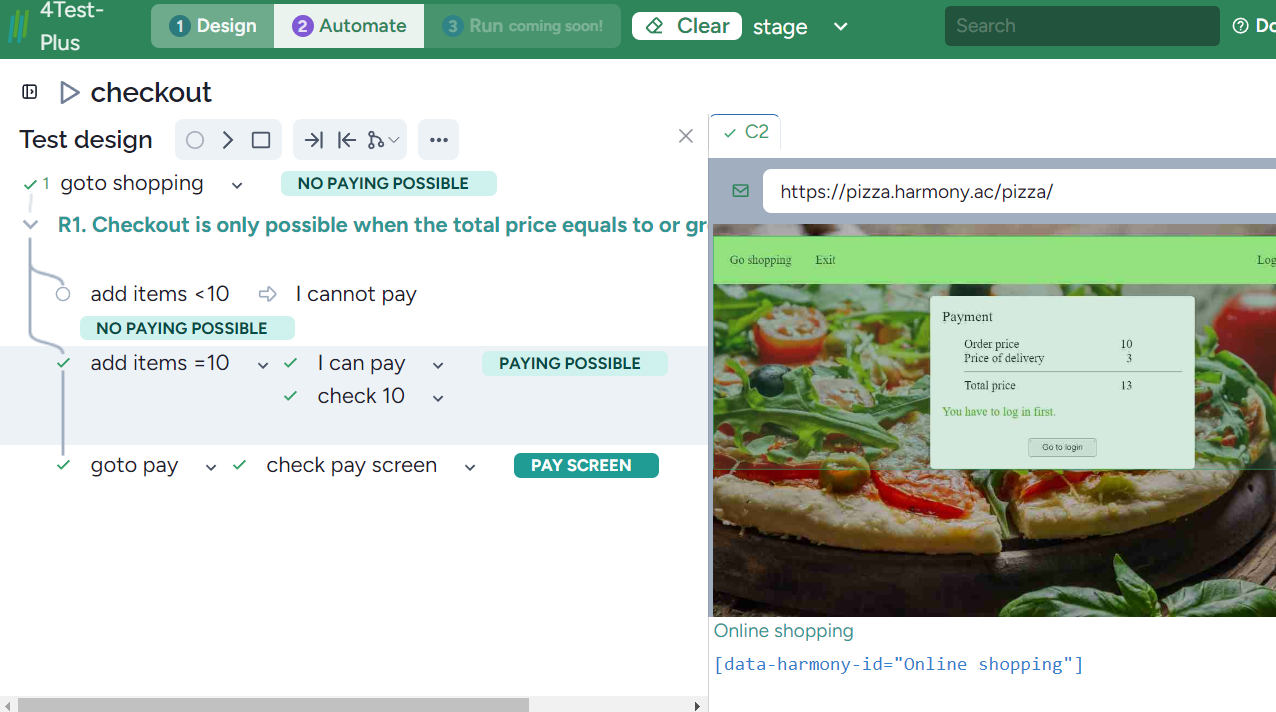

When you select Automate, the Test design window and the Browser appear:
Image without caption

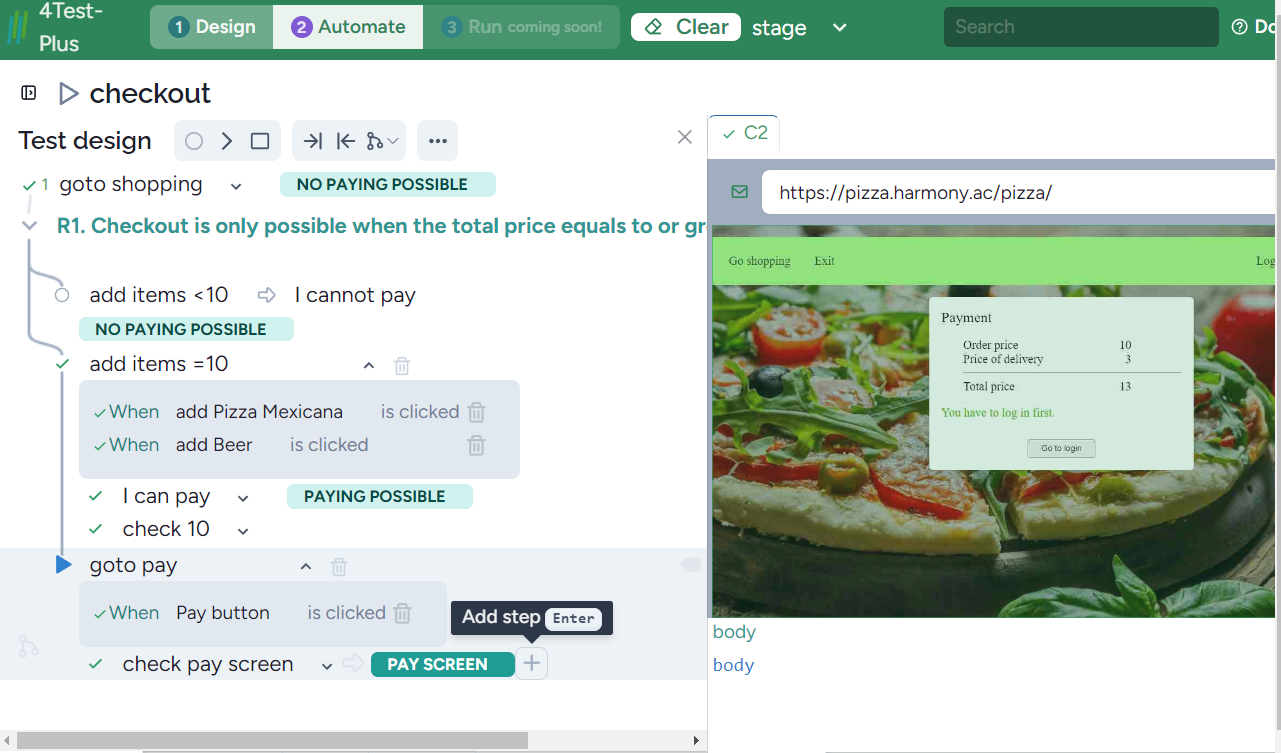

In this display arrangement, the low-level steps can also be opened:
Image without caption

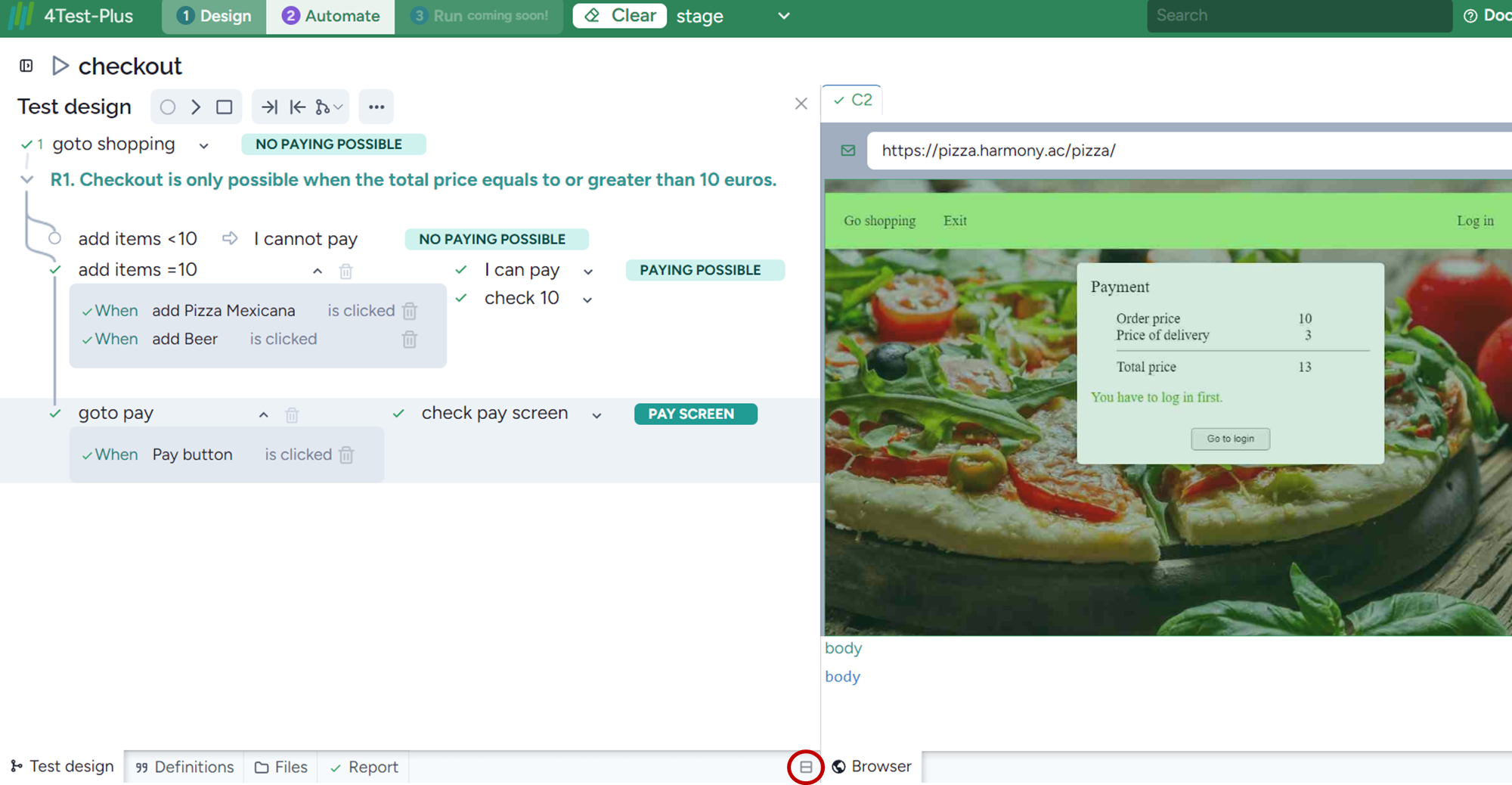

You can also move the browser below the test design by clicking on the icon in the red circle:
Image without caption

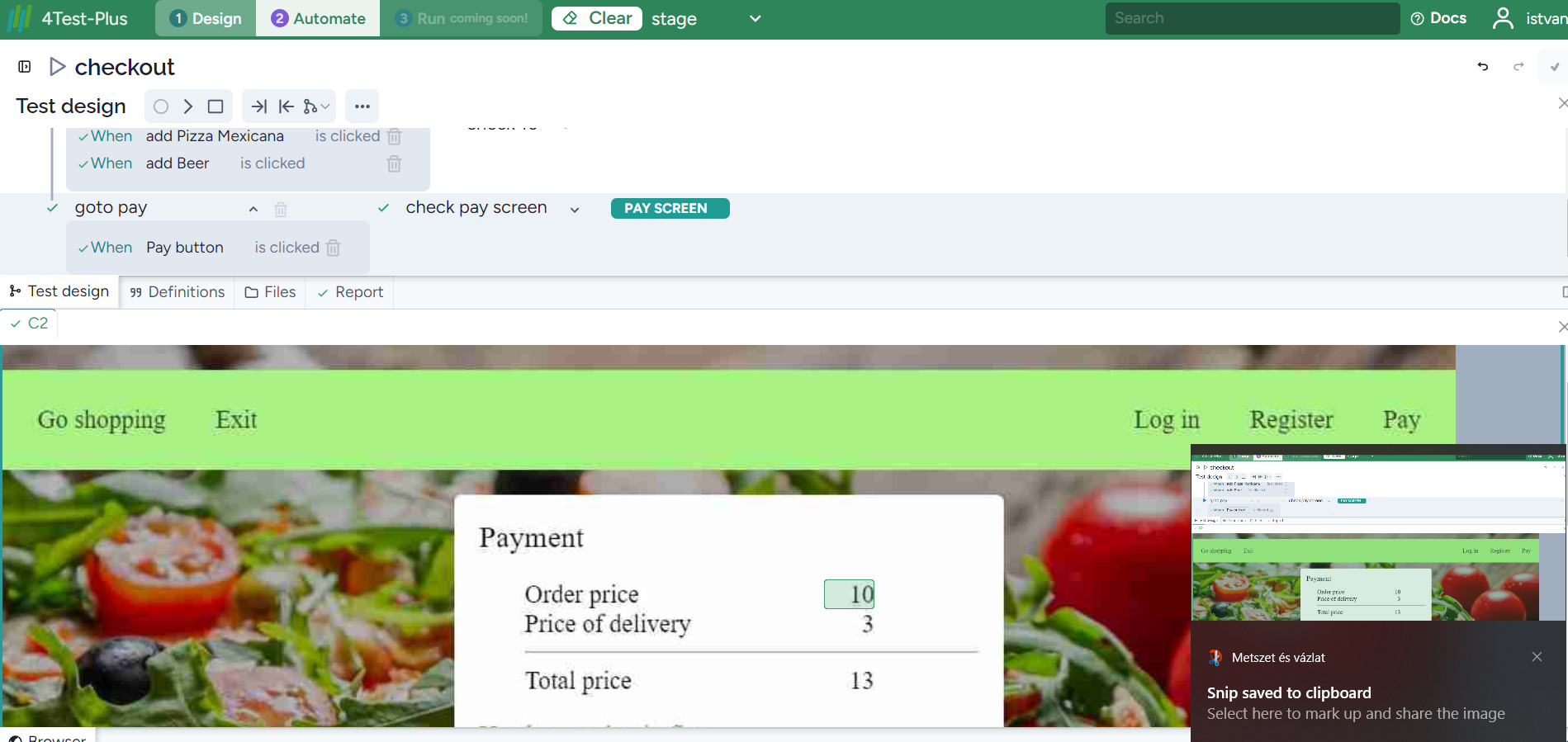

resulting in:
Image without caption
